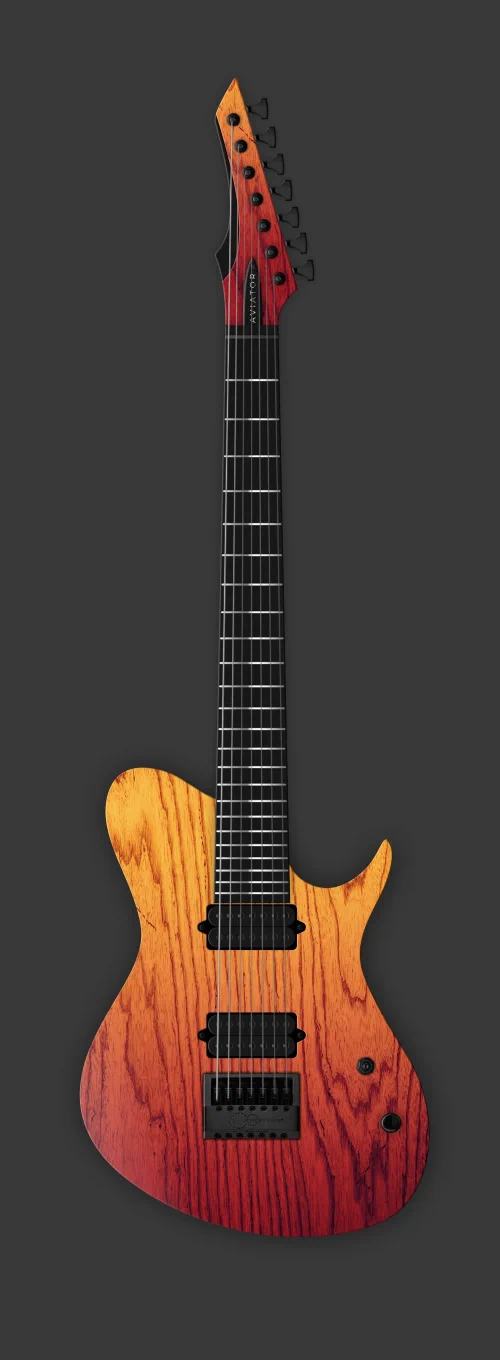

Welcome to the Pilot Modern Guitar

Pilot Edition is our take at High-End workhorse guitars that excel both live and in the studio. We selected a tried and tested combination of materials and hardware for a balanced sound and great looks, creating a beautiful, functional and reliable instrument of the highest quality.

Specification

1. Base Specification

Select from our 4 most popular body styles and a variety of beautiful stain finishes over Swamp Ash body.

Wenge/Maple/Wenge 3-piece Neck with pitch black Richlite fretboard and carbon reinforcement rods in combination with Hipshot USA Locking Tuners, Jescar stainless steel jumbo frets, and top quality parts, make these guitars the ultimate workhorse instruments.

Customization options include Baritone Scale and Multiscale, and Evertune bridge for superior tuning stability.

Available as 6, 7 or 8 string.

2. Construction

Guitar	Left or Right Handed
Construction	Bolt-On Neck
Body	Swamp Ash with flat top and tapered armrest
Comfort	Smooth Neck Heel, Belly Cut
Neck	Wenge/Maple/Wenge, Carbon Reinforcement, Dual Action Truss Rod
Finish	Satin Open Grain, Natural or Stained

3. Neck Specification

Neck Profile	C Shape, 1st Fret 20mm 6 string, 19mm 7 and 8 string
Nut Width	6 String 42 mm, 7 String 48 mm, 8 String 55 mm
Scale	Various scales available at base price, optional Multiscale upgrade
Fretboard	Black Richlite. Radius: 6 String 15”, 7 String 17”, 8 String 20”
Frets	Jescar Stainless Steel Jumbo

4. Hardware

Brige	Hipshot USA Hardtail, optional Evertune upgrade
Tuners	Hipshot USA Grip-Lock Open Gear
Pickups	Instrumental SFTY3 or SFTY4, optional Bare Knuckle Brute Force with straight scale 6 and 7 string only
Electronics	MEC 3-Way Toggle, Bourns Volume Pot with Coil Split
Nut	Graph Tech Black Tusq
