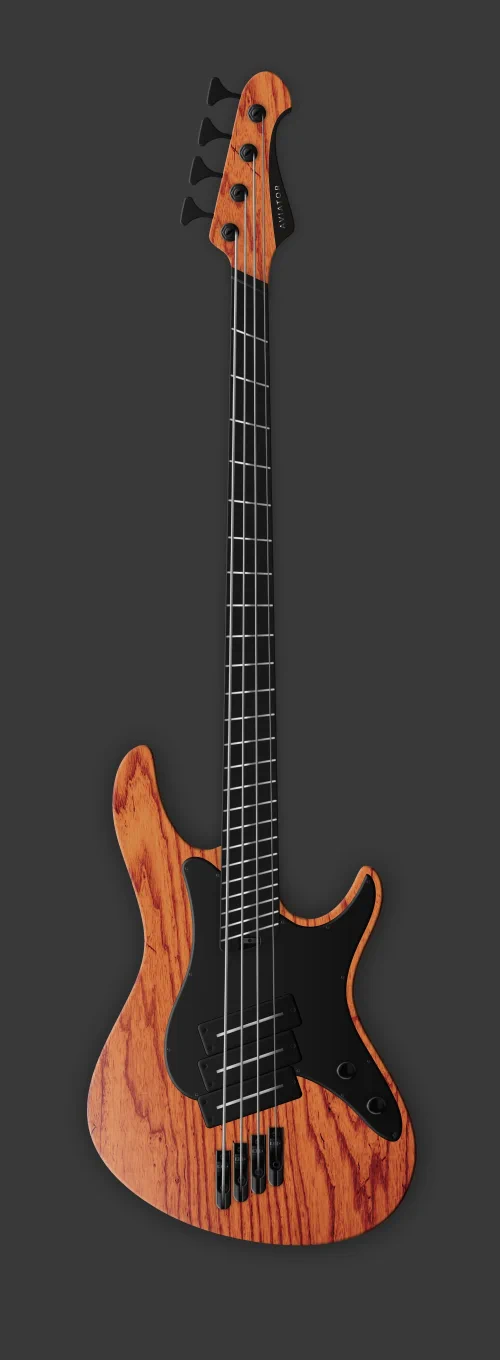

Welcome to the Pilot Modern Bass

Pilot Edition is our take at High-End workhorse guitars that excel both live and in the studio. We selected a tried and tested combination of materials and hardware for a balanced sound and great looks, creating a beautiful, functional and reliable instrument of the highest quality.

Design my instrument

Configurator

Specification

1. Base Specification

Customize your Jetstream Bass with a variety of beautiful stain finishes over Swamp Ash body

Wenge/Maple/Wenge 3-piece Neck with pitch black Richlite fretboard and carbon reinforcement rods in combination with Hipshot USA Brige and Tuners, Jescar stainless steel jumbo frets, and top quality parts, make these guitars the ultimate workhorse instruments.

Customization options include the Darkglass Tone Capsule Active Preamp, and a third middle pickup with 6-way rotary switch for an incredibly versatile tonal palette.

Available as 4, 5 or 6 string.

2. Construction

Guitar	Left or Right Handed
Construction	Bolt-On Neck
Body	Swamp Ash with flat top and tapered armrest
Comfort	Smooth Neck Heel, Belly Cut
Neck	Wenge/Maple/Wenge, Carbon Reinforcement, Dual Action Truss Rod
Finish	Satin Open Grain, Natural or Stained

3. Neck Specification

4 String	C Shape, 20 mm at 1st fret, 22 mm at 12th fret, Nut Width 38 mm, Heel Width 62 mm, Bridge Spacing 18 mm
5 String	C Shape, 20 mm at 1st fret, 22 mm at 12th fret, Nut Width 47 mm, Heel Width 76 mm, Bridge Spacing 18 mm
6 String	C Shape, 20 mm at 1st fret, 22 mm at 12th fret, Nut Width 55 mm, Heel Width 88 mm, Bridge Spacing 17 mm
Fretboard	Black Richlite. Radius: 15”
Frets	Jescar Stainless Steel Jumbo

4. Hardware

Brige	Hipshot USA Triple Lockdown
Tuners	Hipshot USA Ultralite
Pickups	Nordstrand Big Blade
Electronics	Bourns Volume Pot, 4-Way Rotary Pickup Selector
Nut	Graph Tech Black Tusq
